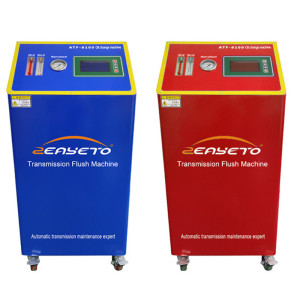

Zeayeto Low Cost For Transmission Fluid Change Machine Atf Changer

Zeayeto Low Cost For Transmission Fluid Change Machine Atf Changer

Zeayeto Low Cost For Transmission Fluid Change Machine Atf Changer
Zeayeto Low Cost For Transmission Fluid Change Machine Atf ChangerZeayeto Low Cost For Transmission Fluid Change Machine Atf ChangerZeayeto Low Cost For Transmission Fluid Change Machine Atf Changer
CategoriesTransmission Flush Machine
BrandZeayeto
ModelATF-8100
Product nameTransmission flush machine
Model numberATF8100
ApplificationAuto gearbox
UsageGearbox fluid exchanging
Power150 W
Input voltageDC 12V
Gross Weight50 KG
CertificationCE
Warranty1 Year
FOB portShenzhen
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download DOCpdf icon
Update TimeMar 29,2024
Detail Information

Zeayeto Low Cost For Transmission Fluid Change Machine Atf Changer


Introduction:

According to the automatic transmission maintenance regulations, the oil of the automatic transmission should be replaced after the vehicle has run 20,000-40,000km.After the automatic transmission is used for a long time, the internal transmission oil will deteriorate. If the automatic transmission oil cannot be replaced in time, this will result in the automatic transmission works abnormally.


Parameters:

Voltage

DC12V

Maximum power

150W

Oil drum

20L*2

Oil tube

2.5 m

Size

490*450*1050mm

Package dimension

490*535*1200mm


Usage:

Transmission oil has the functions of lubrication, cleaning, rust prevention, heat dissipation, gear shifting, etc. The gear runs at high speed and friction generates heat during driving. This requires transmission oil to lubricate and lower the temperature, ensuring the normal operation of the vehicle at one time. It also reduces oil loss under severe operating conditions.

This requires regular replacement of the transmission oil. The traditional oil change method does not guarantee the purity of the oil, so the gearbox comes into being.


Function:

1. Automatically identify the in/out direction of oil / intelligently transfer the in/out direction of oil of the automatic transmission

2. Automatically identify the positive and negative poles of the power supply.

3. High-precision automatic intelligent electronic control the equal exchange of new and used oil.

4. Automatic cyclic cleaning function.


Parameters:

Voltage

DC12V

Working pressure

0-1.6 Mpa

Gross weight

65kg

Maximum power

150W

Oil drum

20L*2

Oil tube

2.5 m

Color

Red, blue


The benefits of replacing the transmission oil:

Automatic transmissions are essential for automatic transmissions. Failure to strictly follow maintenance procedures, lack of timely inspections and routine maintenance can accelerate gearbox damage and failure.

Replacing the transmission oil improves driving safety and extends the life of the automatic transmission because it is the working medium for energy conversion; hydraulically controlled or electro-hydraulic control of the lockup clutch and shift actuator; Lubrication, cooling, and sealing functions.


Effect:

1. Replace 99% of the old oil and filter out the metal impurities and sludge in the internal oil circuit of the machine.

2. Improve driving comfort and safety of the car

3. Can reduce the maintenance cost of the gearbox

4. The most important point is to extend the life of the gearbox.


Operation Notice:

1) It is PROHIBITED to add automatic transmission oil or protective agent from the filler port when the machine is running.

2) The used oil tank and new oil tanks of the machine must KEEP EMPTY without any oil when the machine is kept for storage. After the machine completes its work, the used oil should be discharged to other containers or drained immediately.

3) When the machine is running, place the machine in a horizontal place to ensure that the machine will pump all the oil in the tank.

4) Except for emergency situations, please DO NOT TURN OFF the engine and restart the machine in the process of equal exchange of transmission oil. This is to prevent the restart of the engine from affecting the accuracy of equal exchange.

5) The professional operator must monitor the oil change process closely.
